PlyFloor

IBS PlyFloor has been designed for use as a flooring substrate as well as an ideal substrate under roofing or decking rubber membranes.

IBS PlyFloor has been designed for use as a flooring substrate as well as an ideal substrate under roofing or decking rubber membranes.

Being certified to AS/NZS 2269 to a strength grade of F11 gives the assurance of structural integrity along with the knowledge that this is a product designed for use in New Zealand.

IBS PlyFloor is a certified “A” bond using an exterior phenol-formaldehyde resin,  mission class E0, complying with other international Low Formaldehyde Emission (LFE) requirements like JAS Super-E0. A plastic tongue and groove runs along the length of the sheets and makes it easy when flooring directly over joists.

IBS Plyfloor is only available as H3.2 Treated to give you the maximum protection against the elements.

Plyfloor Intended Use

Flooring

The floor framing must be designed to NZS 3604: 2011, (section 7) or specifically designed to NZS 3603:1993. Where the substrate is existing, the designer must assure themselves that the substrate is suitable for the intended building work and intended building use.

Account shall be taken in consideration of the floor loads, refer to NZS 3604:2011, (section 1). Plyfloor can be used as a structural floor diaphragm when specified in accordance with NZS 3604:2011 (section 7).

Deck or roof substrate

Specification must be in accordance with E2/AS1 with all fixings (materials and spacings) in accordance with NZS 3604:2011.

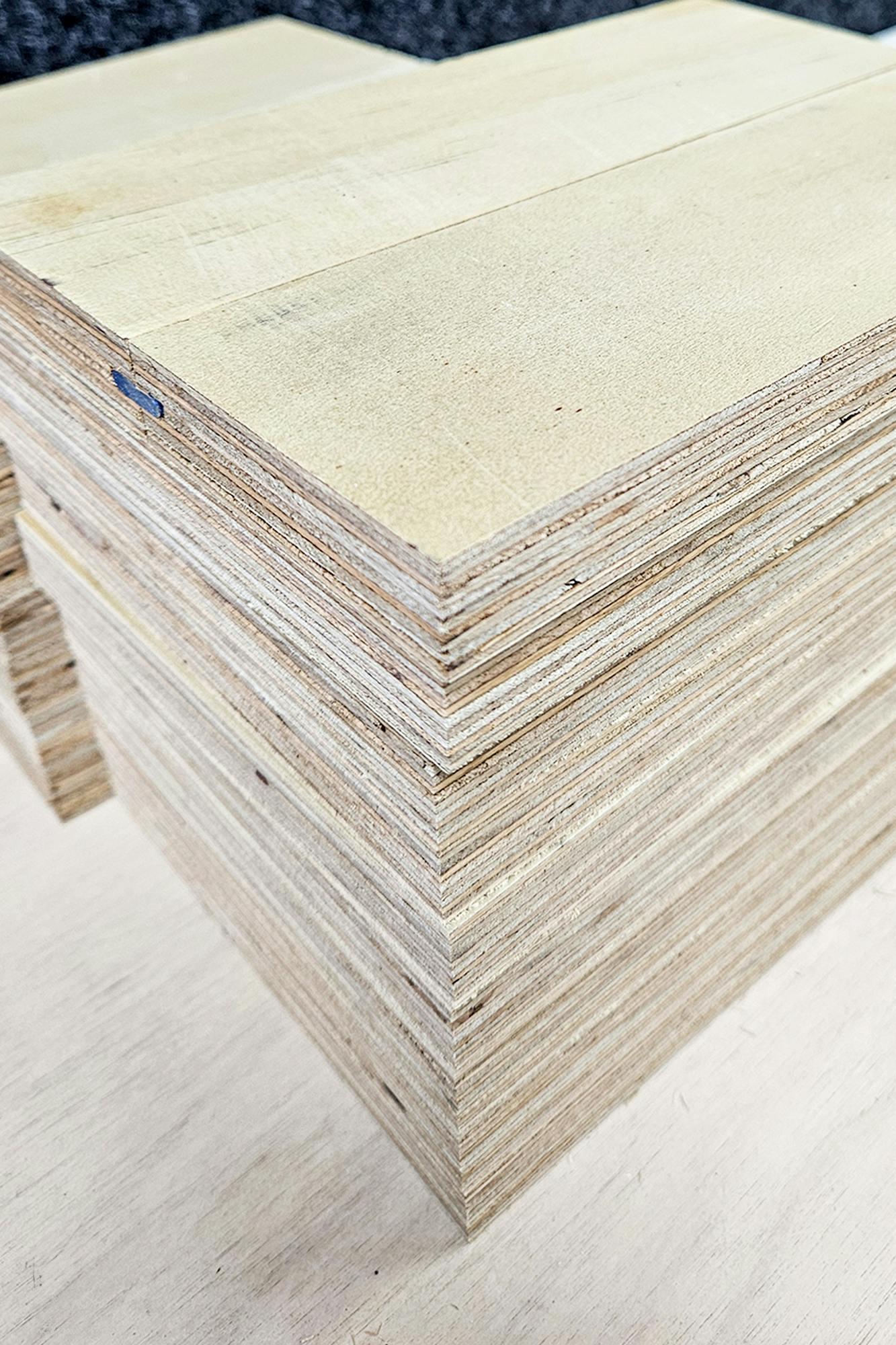

PlyFloor-Corner
PlyFloor-Corner

Interested?
Order a sample using the form below.

Product Details

L x W x Thickness (mm) Weight (kg) IBS Product Code GTIN
2400 x 1200 x 19 29.9 PLYFTM192412 09421028769648
  • Manufactured from PEFC Certified forests in Chile by Arauco
  • Low Formaldehyde Emissions (LFE) panel
  • Ultrasound tested on the production line
  • AS/NZS 2269 structurally certified to F11
  • High quality face veneer
  • WBP Marine Bonded Phenolic Glue
  • Plastic T&G running the length of the board

ORDER A SAMPLE

Thank you for your message. It has been sent.
There was an error trying to send your message. Please try again later.

Order a sample

If you’d like to order a sample prior to making an order, fill in the form and let us know what you’d like. All samples are A5 size. If you require multiple samples, please contact our team directly on 0800 367 759.

Where to buy

You can also find our products from all major suppliers of building materials and hardware. Find your closest IBS merchants by clicking below.

FIND YOUR CLOSEST MERCHANT
