CD Structural Ply

Our premium CD Structural Plywood is designed specifically for applications where both aesthetics and structural integrity matter. This high-quality grade ensures no open face knotholes and a maximum of 8 wood patches, with minimal synthetic repairs. Enjoy a smooth, clean face veneer, meticulously filled and finished with 150 grit sanding on the front and 100 on the back.

Ideal for creating visually appealing and structurally sound results every time, whether you’re working on furniture, cabinetry, or any other project that requires a refined finish and robust performance.
*Not used as an external cladding.

Application
✔️ Wall bracing element

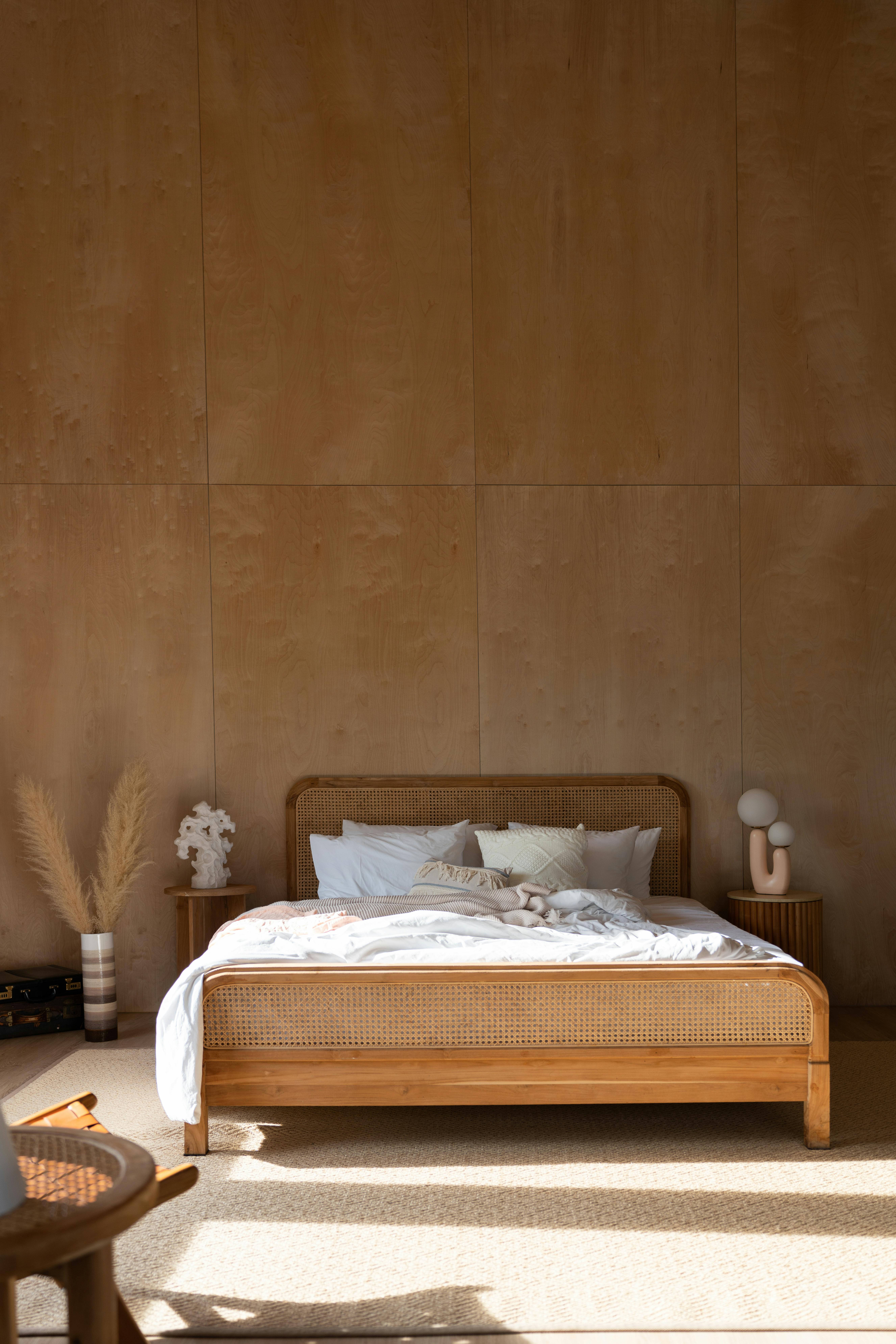

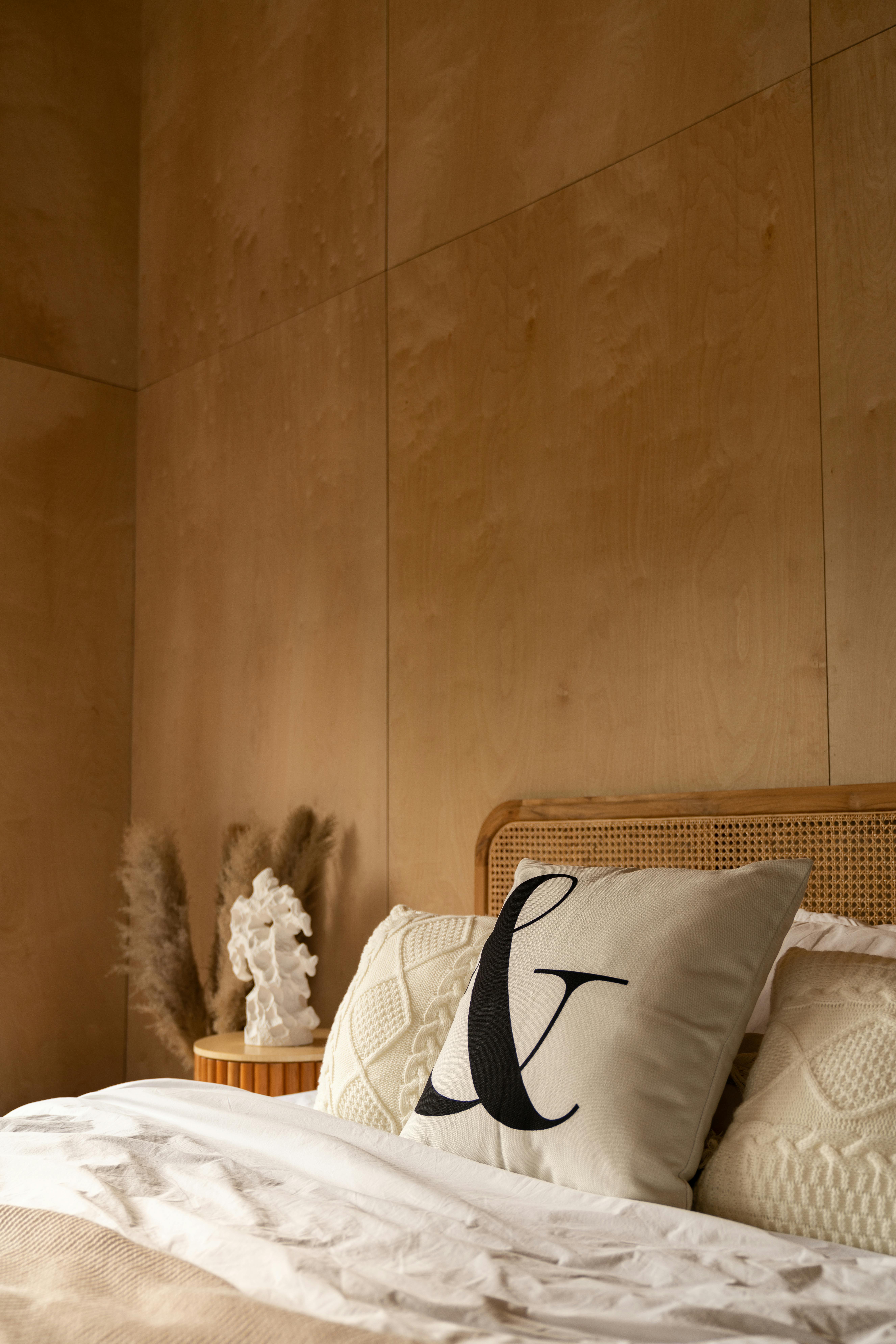

✔️ Internal wall paneling
✔️ Deck or roof substrate
Product Benefits
Enquire Order a sample
CD Structural Ply 01 CD Structural Ply
CD structural pl Y 1

Technical Resources

Choose IBS CD Structural Plywood for your next building project and experience the difference in quality, performance, and sustainability.

Transform your construction with a product that delivers exceptional results and peace of mind.

This panel features a certified “A” bond glue line for superior durability, low formaldehyde emissions (LFE) for a healthier environment, and a clean solid face that may include solid knots and splits with minor filling offering both strength and a refined appearance.

Product Details

IBS CD Structural
F8 Untreated Ply
L x W x Thickness (mm)
2400 x 1200 x 7
Weight (kg)
10.5
IBS product Code
CDAU072412
GTIN
9421028761765
L x W x Thickness (mm)
2400 X 1200 X 9
Weight (kg)
13.5
IBS product Code
CDAU092412
GTIN
9421028761772
L x W x Thickness (mm)
2400 X 1200 X 12
Weight (kg)
18
IBS product Code
CDAU122412
GTIN
9421028761796
L x W x Thickness (mm)
2400 X 1200 X 18
Weight (kg)
27
IBS product Code
CDAU182412
GTIN
9421028761819
L x W x Thickness (mm)
2400 X 1200 X 21
Weight (kg)
31.4
IBS product Code
CDAU212412
GTIN
9421028761826
L x W x Thickness (mm)
2400 X 1200 X 25
Weight (kg)
37.4
IBS product Code
CDAU252412
GTIN
9421028769082
IBS CD Structural
F8 H3.2 Treated Ply
L x W x Thickness (mm)
2400 x 1200 x 7
Weight (kg)
10.5
IBS product Code
CDAT072412
GTIN
09421028761765
L x W x Thickness (mm)
2400 x 1200 x 9
Weight (kg)
13.5
IBS product Code
CDAT092412
GTIN
09421028761772
L x W x Thickness (mm)
2400 x 1200 x 12
Weight (kg)
18.8
IBS product Code
CDAT122412
GTIN
9421028761987
L x W x Thickness (mm)
2400 X 1200 X 18
Weight (kg)
28.3
IBS product Code
CDAT182412
GTIN
9421028762007
L x W x Thickness (mm)
2400 X 1200 X 21
Weight (kg)
33.0
IBS product Code
CDAT212412
GTIN
9421028762014
L x W x Thickness (mm)
2400 X 1200 X 25
Weight (kg)
39.2
IBS product Code
CDAT252412
GTIN
9421028762021

“Built to perform IBS CD Structural Plywood delivers F8 strength, certified quality, and lasting durability for every build, big or small.”
