PlyFloor

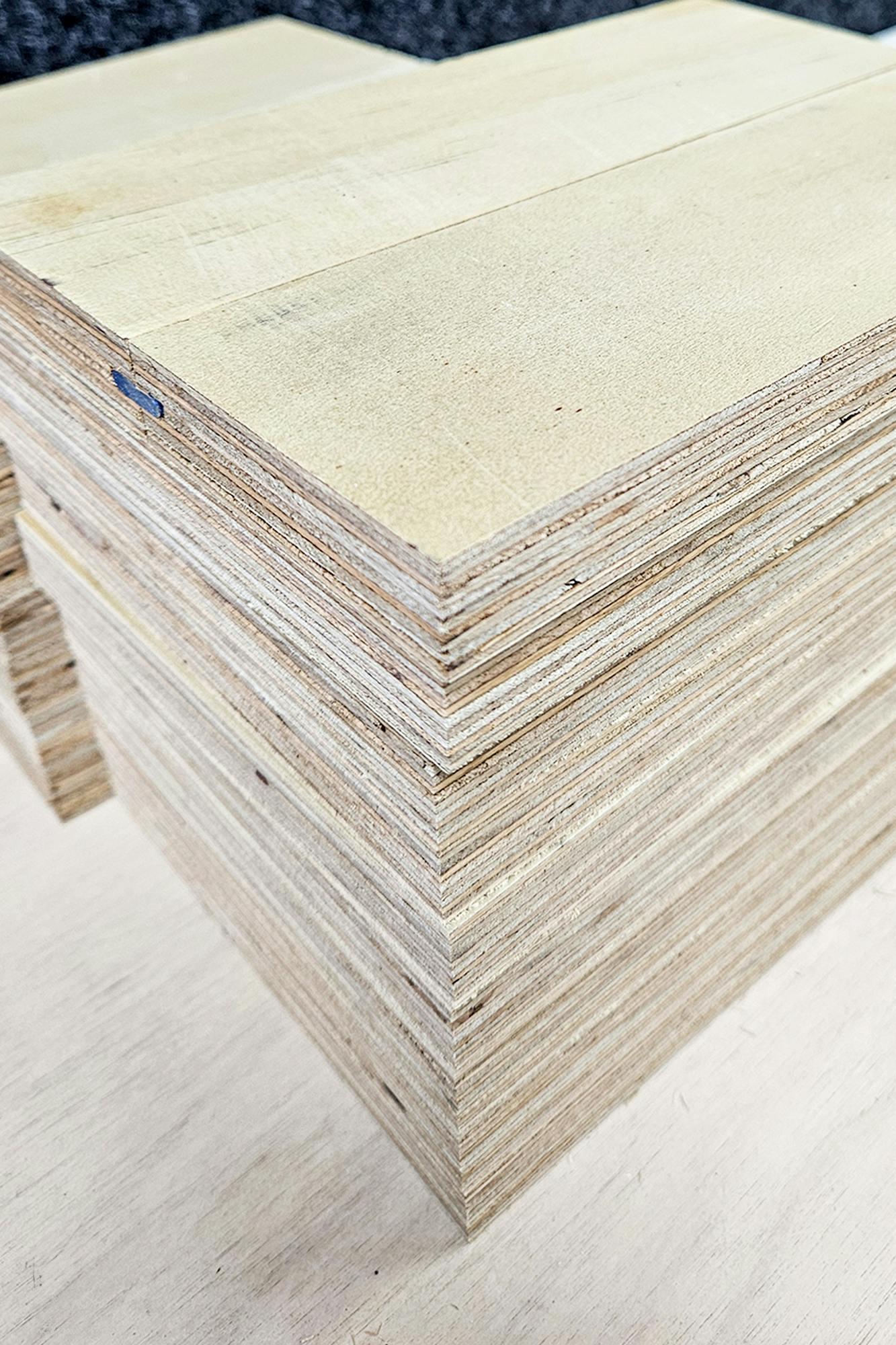

IBS Plyfloor is an F11 structural plywood. The veneers are glued with an exterior phenol-formaldehyde resin.

The Plyfloor sheets are CD grade; no open or loose knotholes and only minor face repairs. Sheets are supplied either untreated or treated to H3.2 (micronized copper azole or MCA).

The sheets have a plastic tongue down one edge and a groove on the opposite edge down the length of the sheet. This enables edge jointing without the need for additional timber support.

IBS PlyFloor
IBS PlyFloor has been designed for use as a flooring substrate as well as an ideal substrate under roofing or decking rubber membranes.
IBS Plyfloor is available untreated for use in internal dry areas or H3.2 treated to give you the maximum protection in internal splash areas such as bathrooms and kitchens or to give you maximum protection in outdoor applications such as decking or roofing substrates.
Application
✔️ Flooring
✔️ Deck or roof substrate
✔️ High quality face veneer
✔️ AS/NZS 2269 structurally certified to F11
Enquire Order a sample
Plyfloor0022
Plyfloor0021

Technical Resources

IBS PlyFloor has been designed for use as a flooring substrate as well as an ideal substrate under roofing or decking rubber membranes.

The sheets have a plastic tongue down one edge and a groove on the opposite edge down the length of the sheet.

This enables edge jointing without the need for additional timber support.

Being certified to AS/NZS 2269 to a strength grade of F11 gives the assurance of structural integrity along with the knowledge that this is a product designed for use in New Zealand.

View the IBS Product Catalogue

Product Details

IBS PlyFloor Untreated
Size & Thickness
L x W x Thickness (mm)
2400 x 1200 x 19
Weight (kg)
30.0
IBS product Code
PLYFU192412
GTIN
09421028769648
L x W x Thickness (mm)
2400 X 1200 X 21
Weight (kg)
33.0
IBS product Code
PLYFU212412
GTIN
09421028762458
IBS PlyFloor Treated
Size & Thickness
L x W x Thickness (mm)
2400 x 1200 x 19
Weight (kg)
29.9
IBS product Code
PLYFT192412
GTIN
09421028762434
L x W x Thickness (mm)
Weight (kg)
IBS product Code
GTIN

“Designed for use as a flooring substrate as well as an ideal substrate under roofing or decking rubber membranes.”

Jason, Architect
